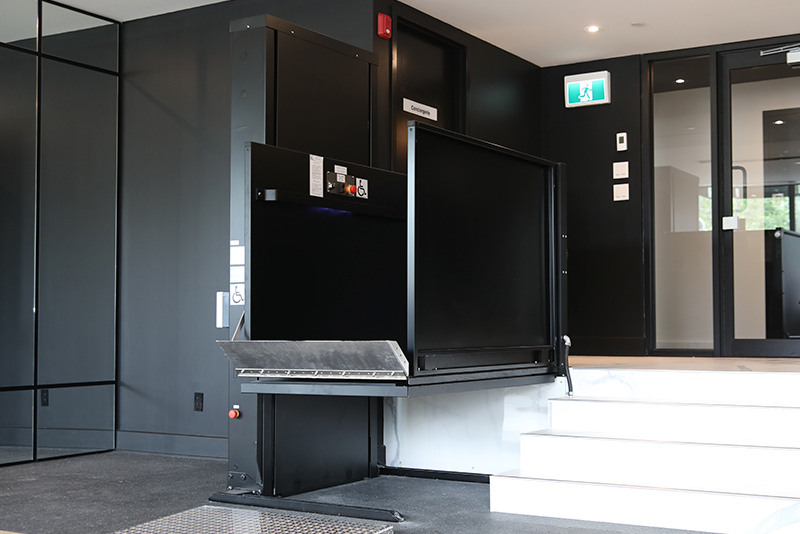

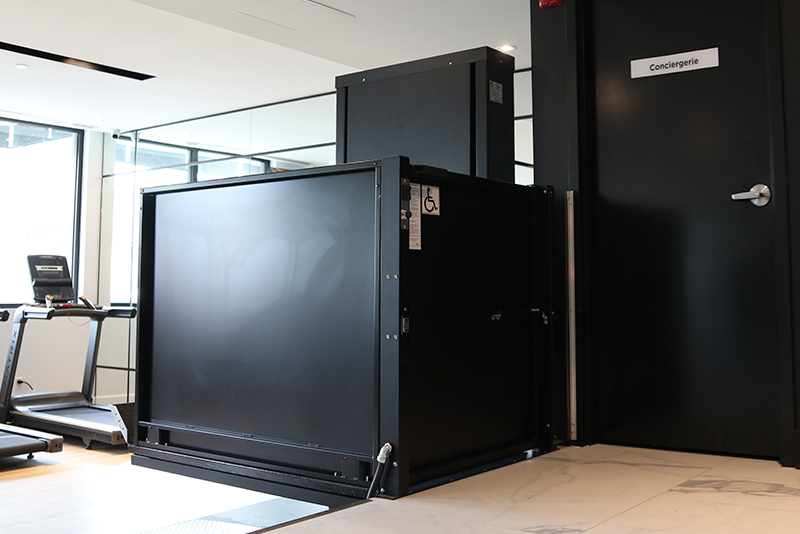

XSSMLXL

Specifications

Lifting Capacity750 lb
Standard Lift Height64"
Maximum Lift Height160"
Lift Speed (FPM)12
Maximum Stops3
Arrives AssembledNo
Drive SystemDirect Drive ACME Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Alarm ButtonIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform SizeW 34"-36" x L 54"-60"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailIncluded
PortableOptional

Specifications

Lifting Capacity750 lb
Standard Lift Height64"
Maximum Lift Height160"
Lift Speed (FPM)12
Maximum Stops3
Arrives AssembledNo
Drive SystemDirect Drive ACME Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Alarm ButtonIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform SizeW 34"-36" x L 54"-60"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailIncluded
PortableOptional
